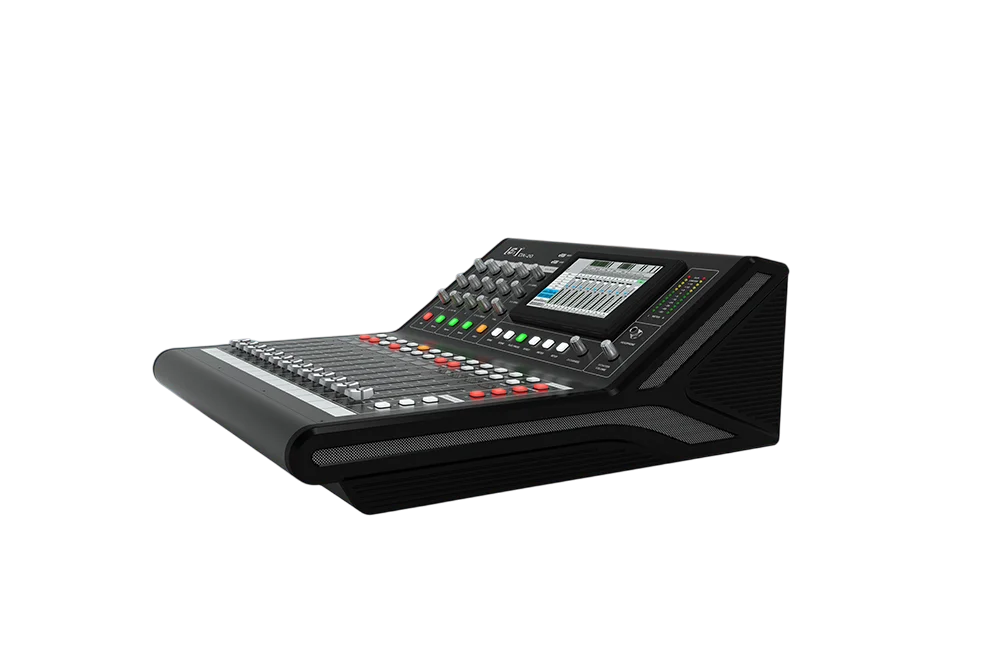

E3 DX-20




Name: Digital mixing station
Display size: 7
Resolution: 1024×600
Touch control: Resistance
Resolution: 1024×600
Master CPU: Samsung 4418 4-core Cortex™-A9
Boot speed: 22 seconds
Operating system: Linux
DSP: ADSP-21489 400Mhz
Analog input: 16CH ( 14MIC + 2Line )
Digital input: S/P DIF, optical fiber
Digital output: AES EBU
USB playback: Play formats APE, FLAC, MP3, WAV
USB recording: Support recording
Analog output: L/R+6BUS+2AUX+Headphone(L/R)
Output base noise: -90dBu unrecorded weight (AP 515 tests AES17-20Khz)
Voice playback base noise: 30dBu talk play gain -86.8dBu no record weight (AP test AES17-20Khz)
40dBu Talk play gain -80dBu no record weight (AP test AES17-20Khz)
Distortion degree: 0.005%@4dBu 1Khz
Sex to noise ratio: -108dB no memory power
Dynamic range: 108dB
Frequency response: 20Hz-20 KHZ ±0.5dB
Maximum input/output level: 18dBu (6.2Vrms) Balance
DCA: There are
English and Chinese interface: There are
Electric faders: 13
Ipad controls: There are
Effector: 2 Effects
Feedback suppressor: 16 channel feedback suppressor
Output delay: Output delay 1 second
Ethernet: 100M
RS-232 protocol: Support for RS232 protocol
WIFI: 150M (optional)
USB mouse: Support
Dimensions (width * depth * height): 535x485x205mm
Power supply: AC 100v-240v ; 50/60Hz 55W
Net weight: 10.7 kg
Gross weight: 14.9 kg
Package size: 635 * 580 * 335
