Description

Rated Power (8ohm): 2x2000W

Rated Power (4ohm): 2x3200W

Rated Power (Bridge 8ohm): 4000W

Frequency Response: 20Hz-20kHz: +/-0.5dB

THD N: 1W/8Ω<0,05

Intermodulation Distortion: 60Hz & 7k 1W/8Ω

Damping Factor: 800 : 1

Slew Rate: 70xstandrd

Input Impedance: 20 kohm (Balanced) / 10 kohm (Unbalanced)

Circuit: Class TD

Supply Voltage: AC~200-240V /50=60Hz

Cooling: Air flow from front to rear

Protection: Soft start, Dc, short circuit, over load,
clip limit, over heat, progressive volume Conector

Input: XLR-F,TRS,XLR-F,XLR-M

Output: Two red and black binding posts Indictor

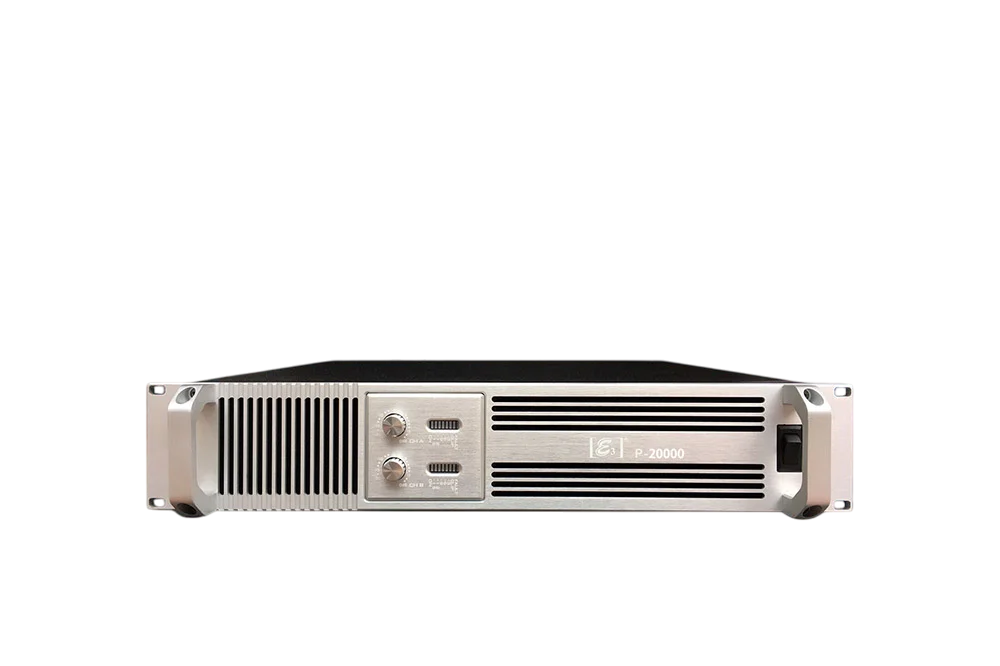

Front panel: Front panel indicator: signal,clip,protect,
power indicator,bridge,parallel power switch, volume, control knob

Rear panel: Stereo / parallel / bridge switch, input sensitivity switch,
low pass filler, high pass fillter, grounding switch
